Well I'm trying to setup a switch that would differentiate from 5V to 12V, and Off.. and such.

It's a wall of text because I'm electrically stupid... :oops:

--

EDIT:
Found a cool article while surfin' da webz.

http://www.silentpcreview.com/article6-page1.html

Pretty much talks about how to get 5V, 7V, or 12V through a switch, without using diodes..

Are there any cons to that version over Brians?
Thanks guys, and sorry for the excessive questions!

Hey guys, was kinda bored in math class earlier today, so thought why not draw out what I'm gonna do?

Anyways, I still have a question; how many and what diodes will I need to drop a 12V connection to 5V?
Or how do I find how much voltage a diode will drop? So that way I can figure out which diode I will need...

Here's what I have so far...
A rough diagram:
http://i53.photobucket.com/albums/g6...4/th_Scan1.jpg

Normal silicon diode is 0.7V forward voltage drop, so 12V to 5V is 7V drop, you'd need 10 diodes in series.

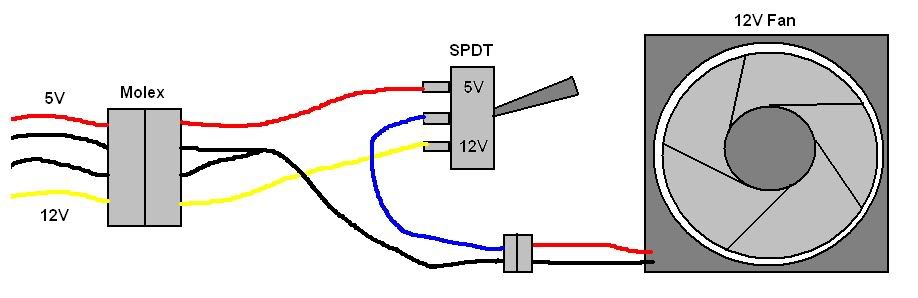

Why not just have the switch connected to the 5V rail in one position and the 12V rail in the other, and detent middle could be off.

Being completely illiterate when it comes to components + electrical stuff, how do I wire that up on a normal SPDT switch? :oops:

Here are a couple more diagrams for 12v/7v and 12v/8.7v, whichever you prefer:

http://scriptasylum.com/forumpics/fanspeed1.gif

http://scriptasylum.com/forumpics/fanspeed2.gif

That will run the fan at 12v or 5v. The 5v setting may be too low for a 12v fan to even start, and even if it does, airflow will be so little it will probably be all but useless. 7v is about the lowest I'd personally go...

I was thinking about that- 5v might be too low to run the fan...

You can actually get 3.3v, 5v, 7v, 8.7, and 12v from a PC supply, but from experience, the 7v, 8.7v, and 12v are the usable voltages. The diodes are only needed if you want something different than those values.

I've seen numerous tests running fans @ 5V, 7V, and 12V.
SilentPCReview.com being on of them.

I'm sure it wouldn't matter if I used + or - for the wire that goes through the switch, right?

Just in case you're wondering where the 3.3v wire is...

http://atxg4.com/images/ATX.jpg

Aaaaacctualllyyy....... :lol:

It does. Either diagram would need to be hooked up exactly as pictured to work properly. :smile:

Well, 5v may work, but may not. You could temporarily wire the fan up to 5v and see if it starts reliably (may "grumble") and has the airflow you want before you make a more permanent switch setup.

That's correct!

:lol: Where's my gold star sticker?
