Waiting for the motor action.

keep us posted!!! Looks good!!! i want to do something similar!

Hi!

I got some parts in:
- Magura Throttle
- Astroflight servo tester

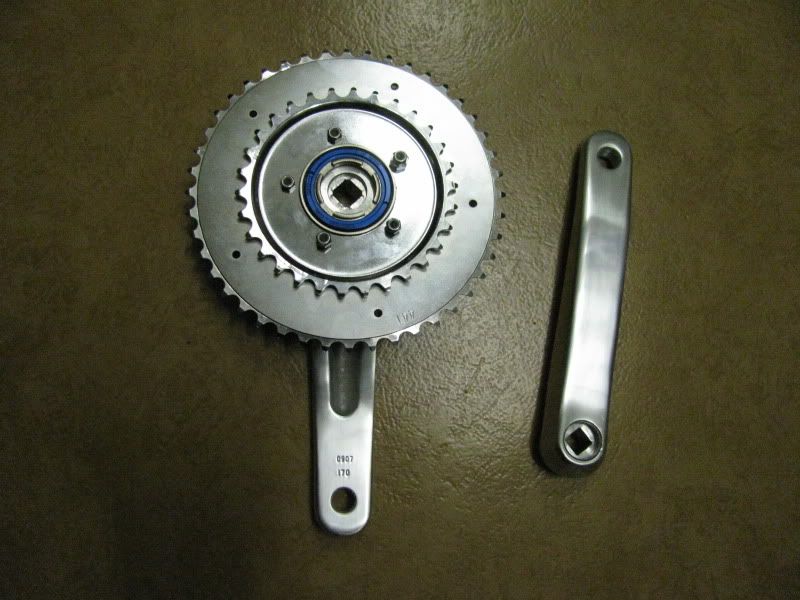

- Sickbikeparts cranks, freewheel and sprockets

I soldered a lot of stuff last weeks, today I made a movie of the motor running, nothing spectacular:
Click!

As you can see; the first 1/3 part of applying throttle the motor stays in neutral, I still have to fix that.

Sickbikeparts:
http://i424.photobucket.com/albums/p...t/IMG_3168.jpg

WOW, never seen 10S plugged in before....

Hehe, since I soldered on the extra 3 2200uF 63V caps there appears a big spark and a funny "boom". It shocks me everytime lol

yeah, haha. Saw ya jump a bit ;)

Very nice. Have seen a few out of the ordinary projects with these turnigy motors now.

Might have to do ome myself one day....

Looking forward to seeing more progress.

Oh by the way nice paint job. I done a similar job on a old bmx i had when i was about 16.

Little update:

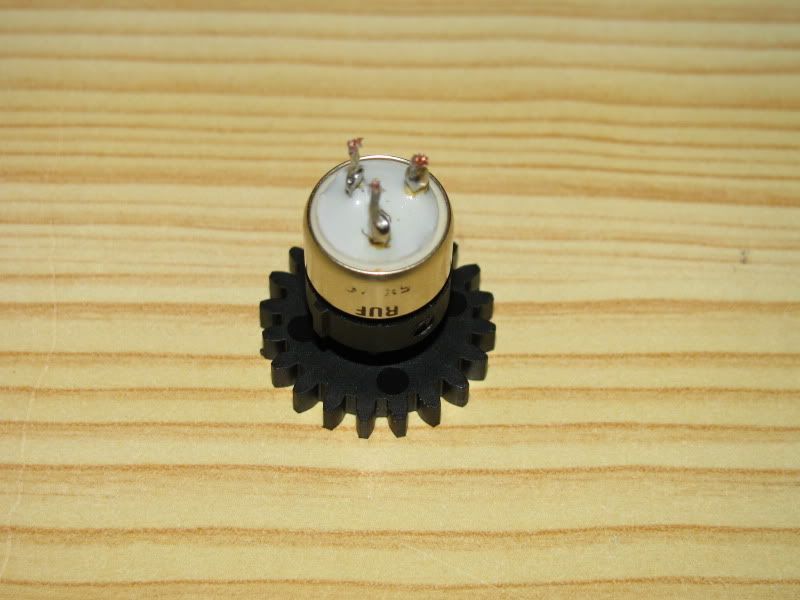

I opened up the Magura throttle... long story short: I twisted the pot a few times till the wires broke off :oops: (I was thinking like "heh? why can I turn this pot so far?" And a few secs later the pot was loosened from the wires hehe :whistle:) I'll fix that soon.
http://i424.photobucket.com/albums/p...t/IMG_3170.jpg

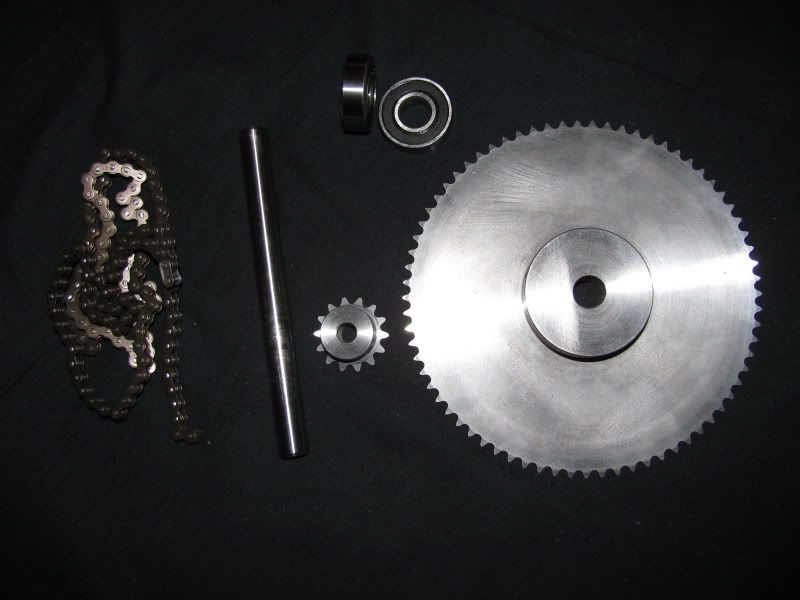

I received my order from SDP:
- #25 Pitch 3 foot chain
- 0.5" Dia. 5.5" Length Stainless steel shaft
- #25 72 teeth spur
- #25 14 teeth pinion
- #25 connecting link
And I also ordered 2 ball bearings at eBay.
$140,-
http://i424.photobucket.com/albums/p...t/IMG_3177.jpg

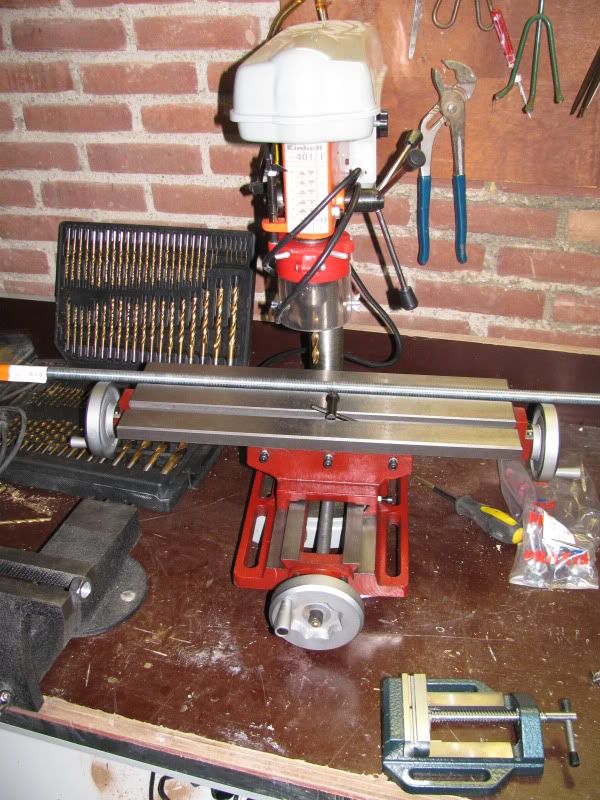

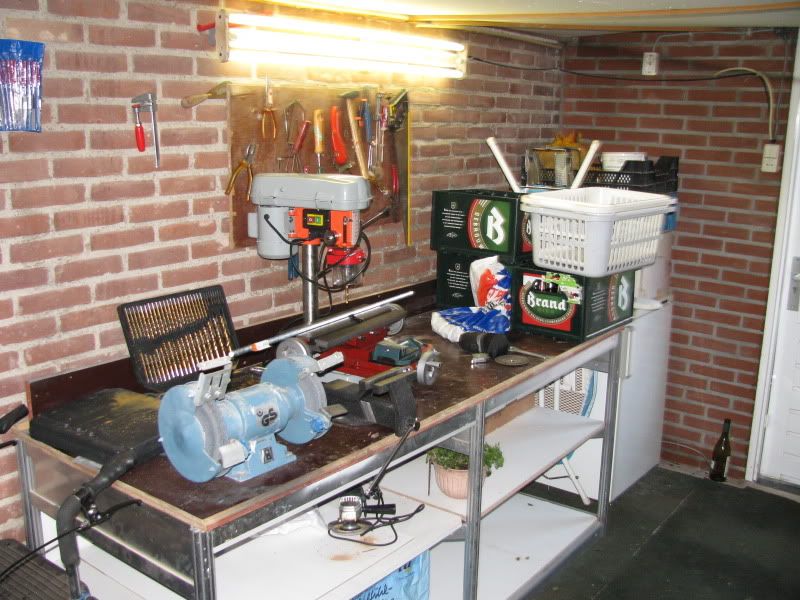

I also got a new workspace, my grandparents offered this to me. It's not big, but I love it. I also received the cross table you can see in the second picture, it's a heavy thing. Costed me about $130,-
http://i424.photobucket.com/albums/p...t/IMG_3174.jpg
http://i424.photobucket.com/albums/p...t/IMG_3175.jpg

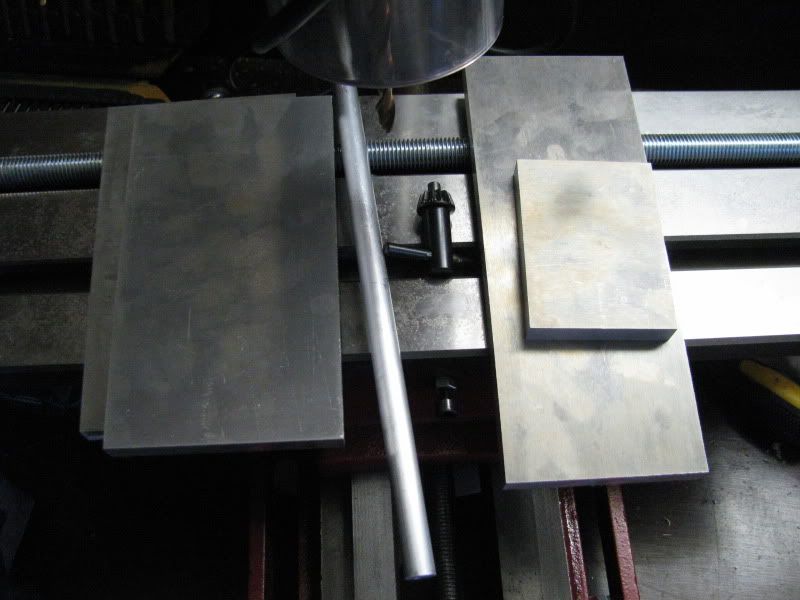

And I received my 7075 aluminium, all pieces are 12mm thick. This stuff was expensive: $80,-
http://i424.photobucket.com/albums/p...t/IMG_3176.jpg


I will start working on the aluminium in a week (I'm busy now).


- Patrick


EDIT: Oh yes.. I ordered 2 pieces of plexiglass. One is just regular white transparant and the other one some kind of black color.

Waiting on updates bro ;)

after 2 months finally a update! After LOTS of hours of measuring, drilling, dremeling, filing and so on I came to this result. The aluminium 7075 is really strong stuff by the way! It's not finished yet, I need to make 3 pipes from aluminium to secure both pieces of alu with the 3 screws you can see. Also I need to drill out the bore of the small sprocket so it will fit the 12mm motorshaft and ofcourse I need to make something so that it can be mounted on the bike. (But I'm very busy with school, so it could take a while till I get that done)

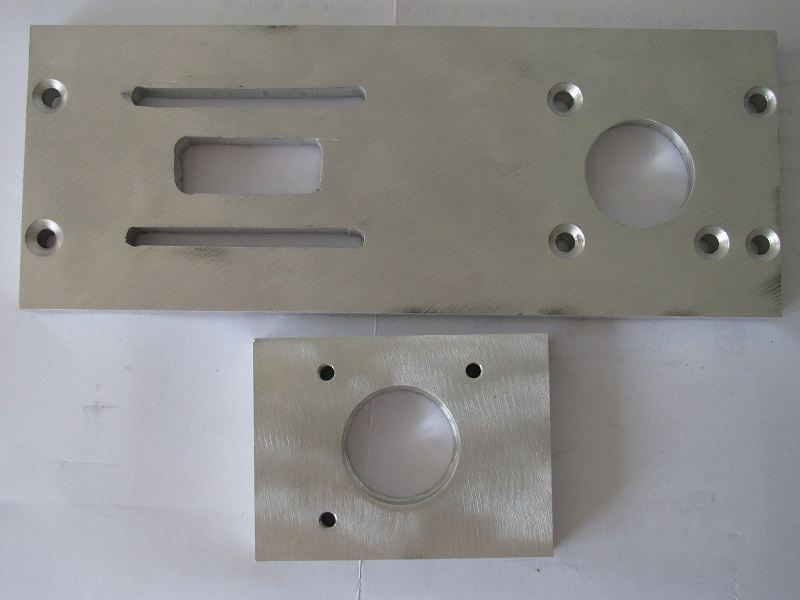

Both pieces
http://www.imgdumper.nl/uploads4/4d9...9-IMG_3198.JPG

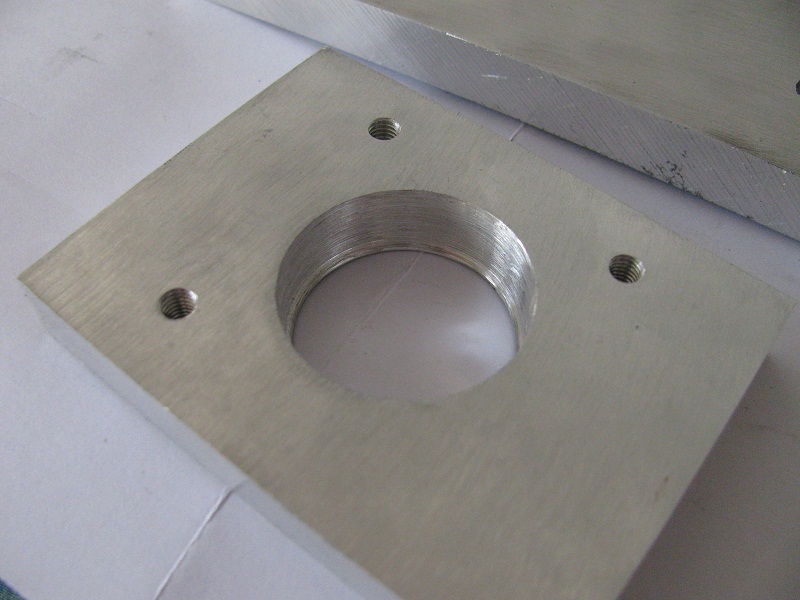

If you look closely you can see that I left just a little aluminium in the big hole so the bearing won't slip away.
http://www.imgdumper.nl/uploads4/4d9...c-IMG_3200.JPG

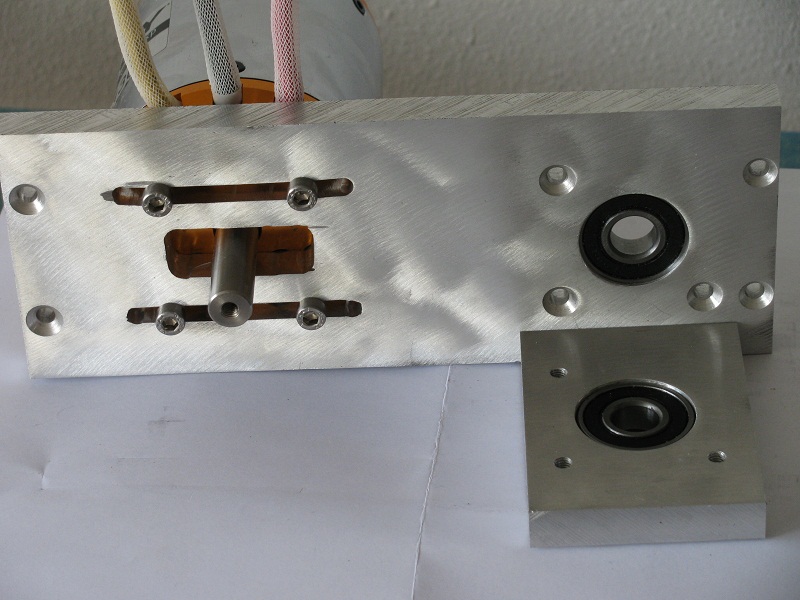

Fitted bearings and mounted the motor
http://www.imgdumper.nl/uploads4/4d9...8-IMG_3197.JPG

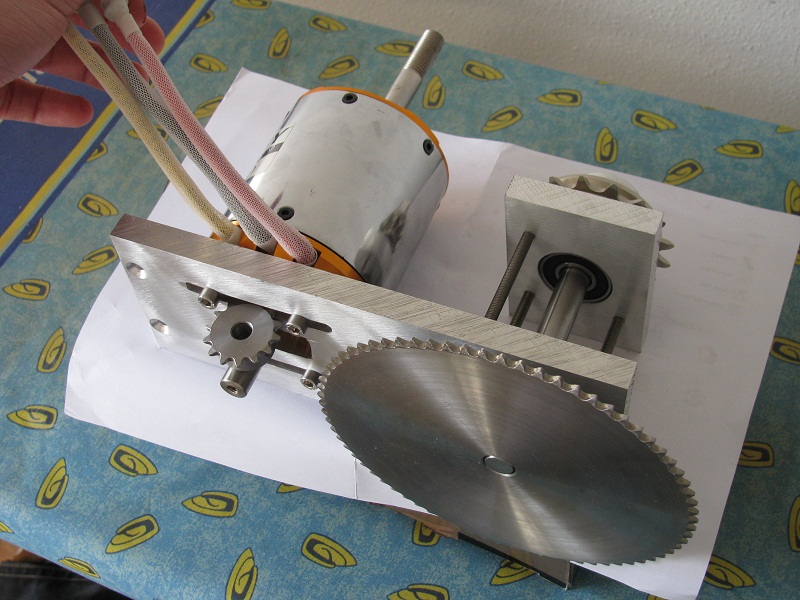

Complete drive unit front side
http://www.imgdumper.nl/uploads4/4d9...6-IMG_3194.JPG

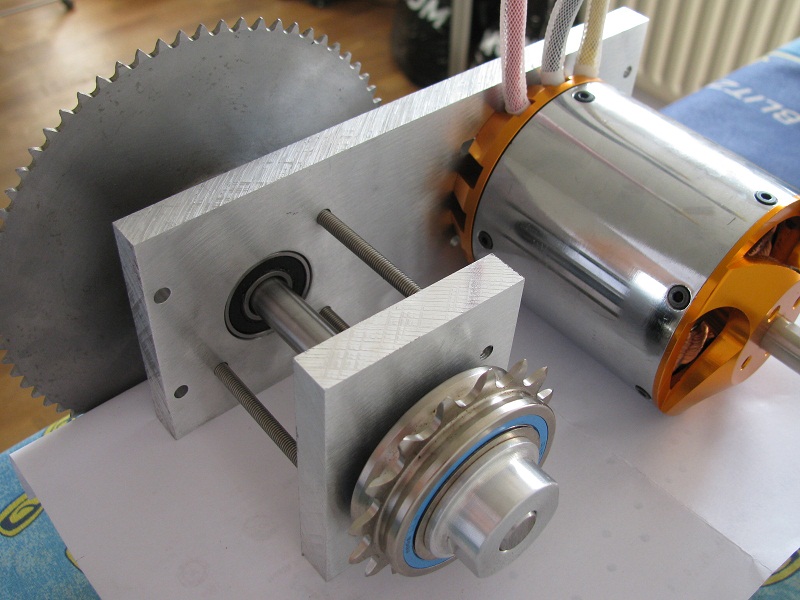

Complete drive unit back side
http://www.imgdumper.nl/uploads4/4d9...e-IMG_3196.JPG

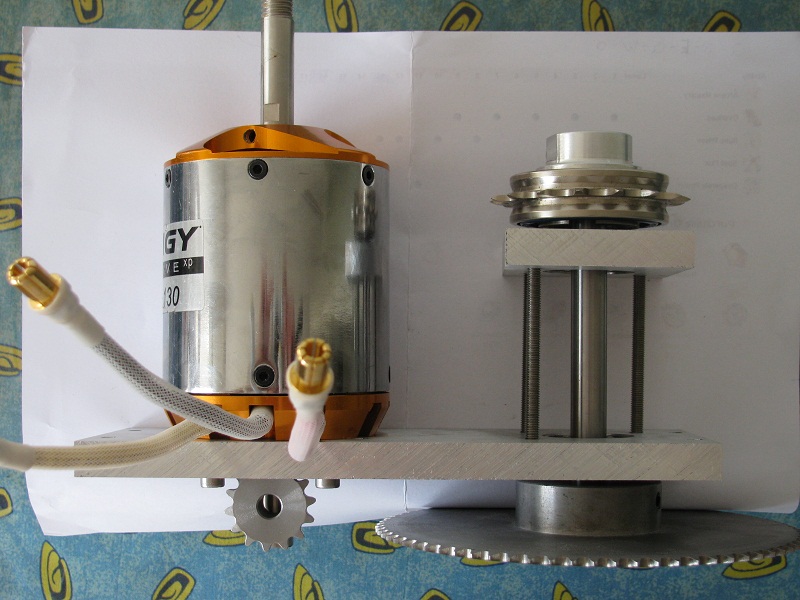

Complete drive unit up side
http://www.imgdumper.nl/uploads4/4d9...9-IMG_3195.JPG


- Patrick

Looking good man.

Very nice. Yes, 7075 is really tough stuff, but that's why I like it! :mdr:

You are going to use washers on the motor mount screws, right? :wink:

Thanks! Uhhhh, I didn't think about using washers for the motor actually but it might be a good idea indeed! :) I should have some 5mm washers laying around here, somewhere lol... need to find them first.

Nice project.


Your project is looking good. I will be truly interested in how exactly you set this up, and of course how it all works together once you get her going. Good machining work for a basement job as well. Very ambitious adventure. Our 14 year old son is also trying to get me to help him build something like this, but I told him he needs to save up some money if he plans to get involved in anything of this nature. What is your total investment so far on this?

Thank you Jerry. On page 2 I posted a 3D model, the driveline will look like that and will be mounted to the frame. Above, on the pictures, you can see a one-way bearing with normal bike size #25 pitch, this one-way bearing sprocket will drive the sprocket which is between the cranks. The rest of the driveline - to the wheel - will be like a normal bike. (It's hard to explain, especially because my English isn't that good. I hope you understand it, if not, just ask! :))

To be honest, I didn't expect it to be so expensive. Small things like the 2 one-way bearings costed me $160, which is quite expensive for some bearings imo. Just costs I overlooked... A rough estimation: €1500 (about $2100) including everything except the bike itself.

Great to hear your son wants to do something like this. Sometimes it's really frustrating for me, I never did something like this before (I'm 17 myself) so it's very new for me too. But everytime I finish something (painted the bike, made the driveline etc.) I get a huge smile on my face which is awesome and keeps me motivated! :mdr:
