Step-by-step building the X-Ray (E) 808 Buggy!..

[TDC57]

Good evening gentlemen,
I just thought I would share with you my building experience associated with my 808. With that said I've been taking a few pics of my build along the way and thought I'd try my best to document it and share the experience / moments with you (MY FRIENDS!!)!. Please feel free to forwards all comment, or if you have any pointers that I've missed along the way that could also help our fellow family members in the future.

Opening the box. (First impressions) Daaammmm… (I love the smell of new parts in the evening!)..









Here is what all of the parts look like all laid out. (This is going to require some thought!) I may have to actually read the instructions (NNnnnaaaa..).. I’ll just wing it for now..






Well lets get started shall we.. I think I will start with the Diffs and a screwdriver! (What??) 
For starters I'm using the following fluids for the diff’s (5000 in the front & centers and 3000 in the rear) I'm also using a mixture of 60% Kettle one with 40% orange juice for the screwdriver..
I'm also going to (lightly sand down the tops of the diffs to ensure that they won’t leak. (Lightly is the key word here gents), just enough to take the shine off them to ensure that there are no high spots.

[TDC57]

Good news!.. These bad boys go together like the one’s I'm using on my GR3 & G3 / the ones Mike sells in his hybrid diff’s kits.. (no worries)..






Well here are the diffs all completed and turning smooth… time for a refill and the next step…





Here is a part that I hate doing, but since I'm killing brain cells tonight I thought I might as well continue down that process. I’ve decided to seal all of the carbon fiber edges. (Good times) NOT!.. I'm just using my trusty cotton swabs, some CA glue and rubber gloves. I'm using the cotton swabs to ensure that I apply the correct amount and obtain the proper coverage throughout all of the edges..

[TDC57]

Ok, all of the CF parts are done (nice and shinny!) OOooo shiny edges!!!, It’s time for another re-fill and lets move on to the…….. HUBS… sure why not!?. Well after a quick glance at the manual (yes I opened it!) I need to do the front transmission now!. Wow this detailed, better review the manual for a while to ensure proper installation techniques are used..

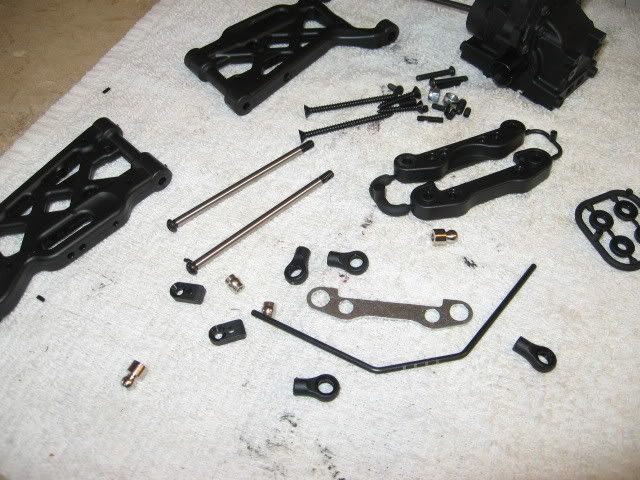

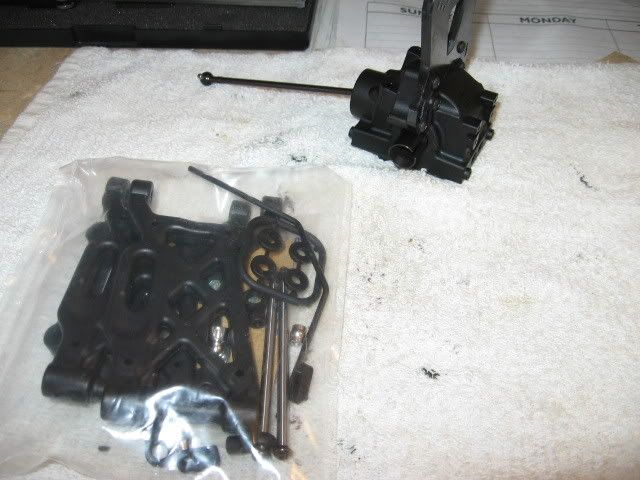

Ok were making some progress now!, let’s see next I’ll install the A-Arms for the rear suspension, better do another refill while I'm at it.. Here the setup in it laid out format.. (Rear) Oooo the rear sway bar is included so I guess this will be going on as well..

[TDC57]

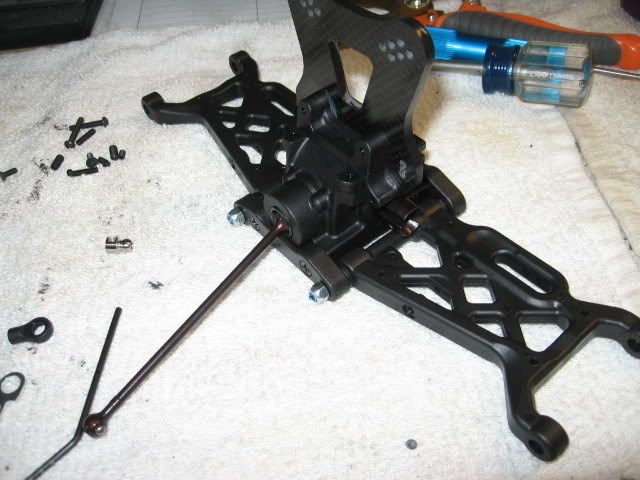

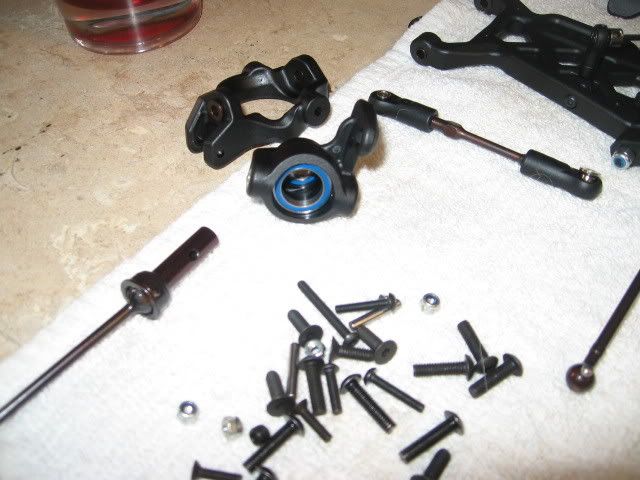

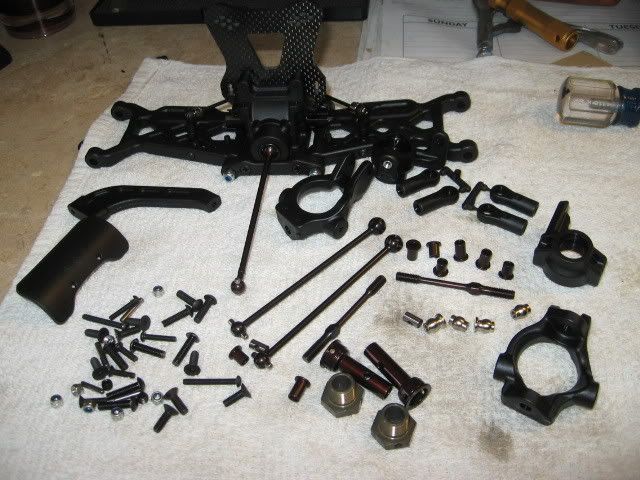

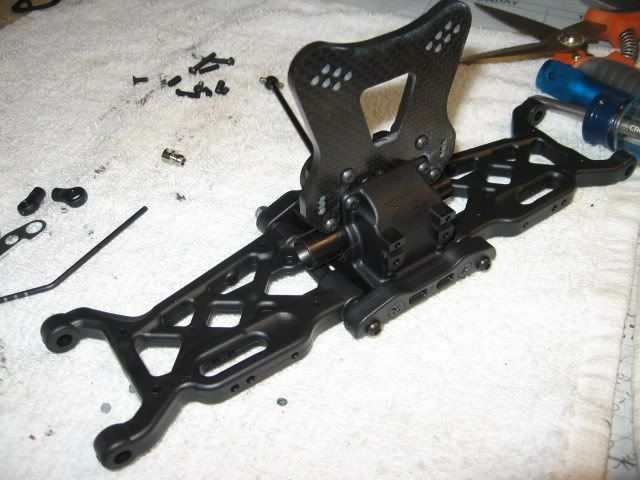

Ok the A-Arms are installed now lets move on the rear drive train and the wing mount.. Dang there are lot of parts in this bag and it’s getting late wish me luck.. better have one more re-fill for the road.











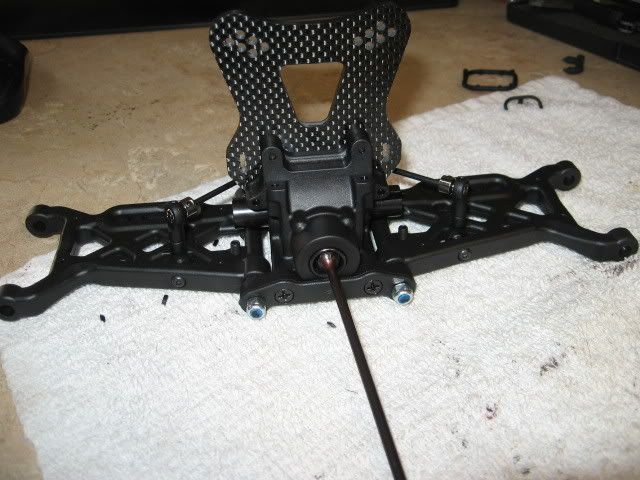

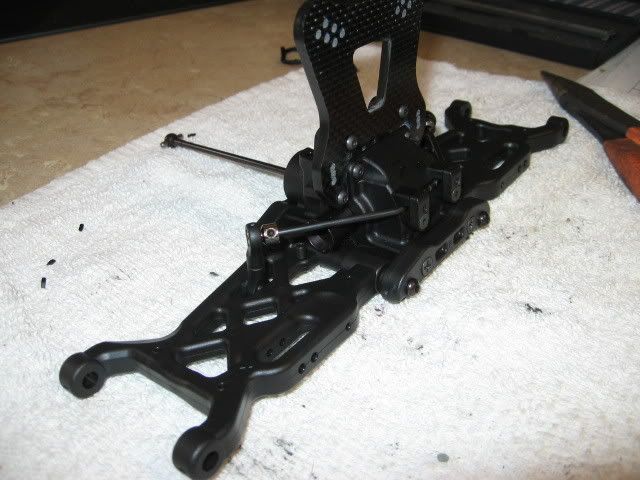

Ok the rear suspension is complete..







I'm going to bed.. thanks for looking and please feel free to leave any and all comments that arise during your review..

Have a great one team..

Shaun.

[xcntrk]

Looks like a fun build!

What motor/electronics setup you plan to run?

It’s not going to see any stinky nitro is it?

[DRIFT_BUGGY]

Coming along very nice

[DRIFT_BUGGY]

Originally Posted by xcntrk

Looks like a fun build!

What motor/electronics setup you plan to run?

It’s not going to see any stinky nitro is it?

RC-Monster Motor Mount & Battery Tray Kit, RCM 15T Mod 1 Pinion, Apache 5s 18.5v 3700mAH Lipo, Neu 1515 1.5ys & MMM ESC

[jayjay283]

Shaun ! Love the 808 supposed to be real nicely built and no fab assembly, the Bently of buggys. Great build coming along nicely and quickly, thanks to mr K1, love the narration lol. I bought a losi 8 truggy from Amain.com tuesday (not here yet) it was that or the Xray xt8, wifey made the call 'cuz I was always saying I want an 8ight. Im always doing stuff a few days after you unplanned, classic (vtwin). What pinion are you going to use ? Looks like im going 60+ with the losi, 1515/1y & 5s unless I put a 2 tooth pinion on it. Something must be wrong. Look forward to see the rest !
Jay

[TDC57]

Originally Posted by xcntrk

Looks like a fun build!

What motor/electronics setup you plan to run?

It’s not going to see any stinky nitro is it?

Good evening xcntrk.. Thanks it’s been a blast so far and a tremendous learning experience (I love to learn).. Nitro!! (NNNNnnnoooo) that stuff will never touch my builds, I'm going to the use a Neu 1515 1.5ys my MMM or a MGM controller I just bought (which ever comes first) and a 5s Lipo I ordered form Mike last week.

Thanks for your comments and have a great one..

Shaun.

Originally Posted by DRIFT_BUGGY

Coming along very nice

Hay Drift Buggy!!! (what’s happen Sir??).. Thanks for the comments, I do like your new avatar!! I saw the video on you tube, Is that your BAD BOY???

How is your Losi 8 coming along?? Got any pictures, that a awesome truck, I'm looking forward to reading your review..

Thanks for stopping buy and kind words, have a great one..

Shaun

Originally Posted by jayjay283

Shaun ! Love the 808 supposed to be real nicely built and no fab assembly, the Bently of buggys. Great build coming along nicely and quickly, thanks to mr K1, love the narration lol. I bought a losi 8 truggy from Amain.com tuesday (not here yet) it was that or the Xray xt8, wifey made the call 'cuz I was always saying I want an 8ight. Im always doing stuff a few days after you unplanned, classic (vtwin). What pinion are you going to use ? Looks like im going 60+ with the losi, 1515/1y & 5s unless I put a 2 tooth pinion on it. Something must be wrong. Look forward to see the rest !
Jay

JayJay.. The man the myth the legend.. How it haggen sir??. Always a pleasure to hear from you!, I'm glad you like the build so-far, you know me K1.. we always work hand in hand on all my builds.. hhheee hheee..

Hay congrads on your Losi 8 purchase, that one awesome truck, I’ll be keeping an eye out your thoughts and updates.. Amain is a great place to shop, they have a lot of selection and are really quick on their turnaround times.. (MUCH LIKE MONSTER!!) Mike is the still the family favorite thou.. I like your comment regarding you and me are always a few days apart on our builds, (Great minds think alike)… Your going to gear your bad boy for 60+?? That’s moving for a buggy!, our V-Twin now that’s one thing but a buggy, Best of luck to you!, I'm thinking of gearing mine for about 45, with the almost the identical components we’ll see, but then again you’re a better man than I..

Have a great one Sir and thanks for stopping buy.. be sure to post some pics of your bad Ass (8) when you get it!..

Shaun.

[DRIFT_BUGGY]

Originally Posted by TDC57

Hay Drift Buggy!!! (what’s happen Sir??).. Thanks for the comments, I do like your new avatar!! I saw the video on you tube, Is that your BAD BOY???

How is your Losi 8 coming along?? Got any pictures, that a awesome truck, I'm looking forward to reading your review..

Thanks for stopping buy and kind words, have a great one..

Shaun

No the EMAXX isn't mine, one of the guys from RC Car Action built it up. There is also a small preview on XXX Main 3 DVD of it.
Losi 8 is coming along slow (mainly because in in Australia) probably be around 3 - 4 weeks before I got it going

[TDC57]

Well after a nasty hangover and several aspirins latter it time to move onward and forward with the project. It time to start the front suspension, better crack open a bottle of wine it’s going to be a long night, tonight’s selections of brain altering substances will be played by a 2002 Chalone Vineyard Pinot Noir, with a 14.2% ahl content. Wine spectator rates this at 97 points. Well that’s enough of the culture hour, lets move on the build shall we..

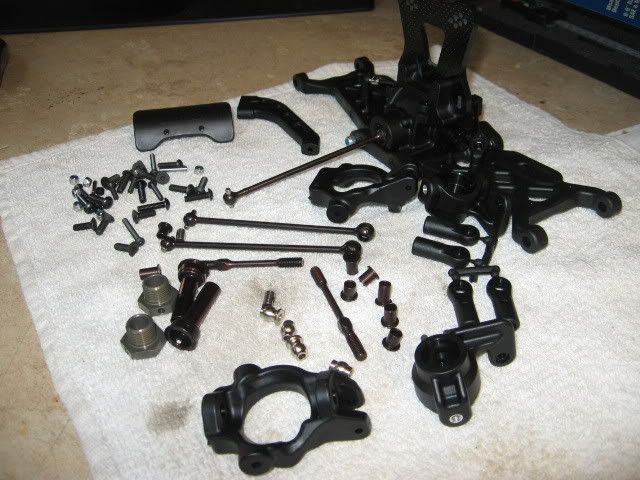

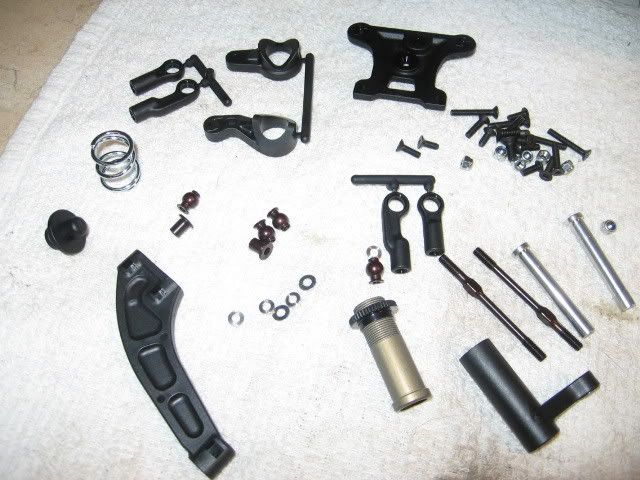

Here is the front suspension laid out and OOOoo goodie I get to install the front sway bar..

[TDC57]

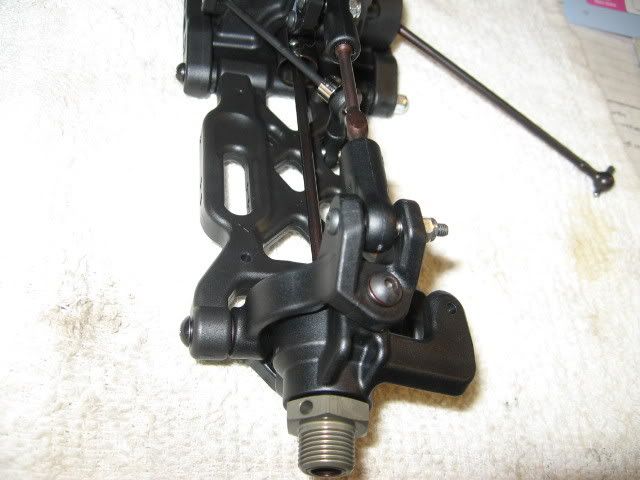

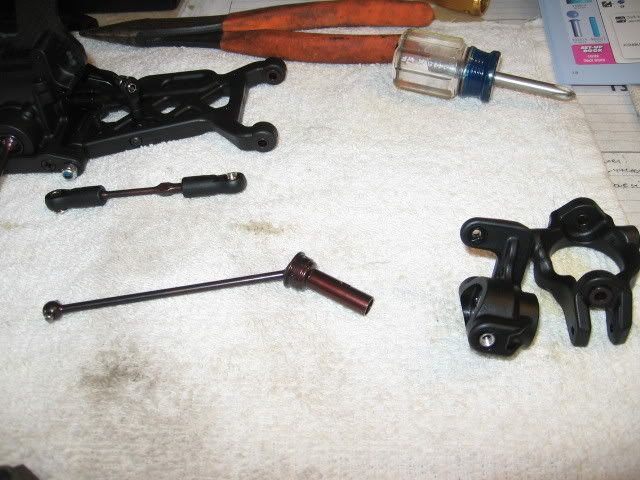

Ok that was easy, now it time for the front drive train again lots of parts and yes I'm reviewing the manual for reference. (Lets see insert slot A into tab b, over the line C, GOT IT!)..








Ok, the glass is empty and the front suspension is all done, time for another re-fill and some more pictures..

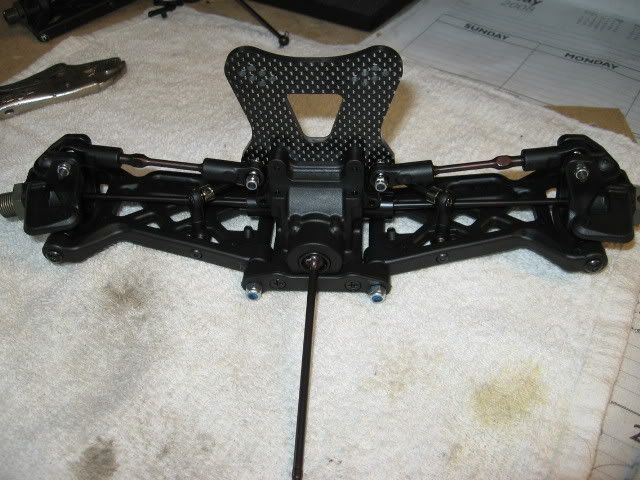

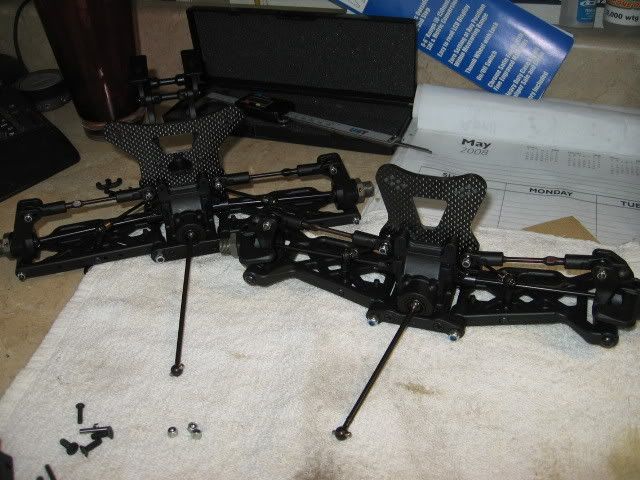

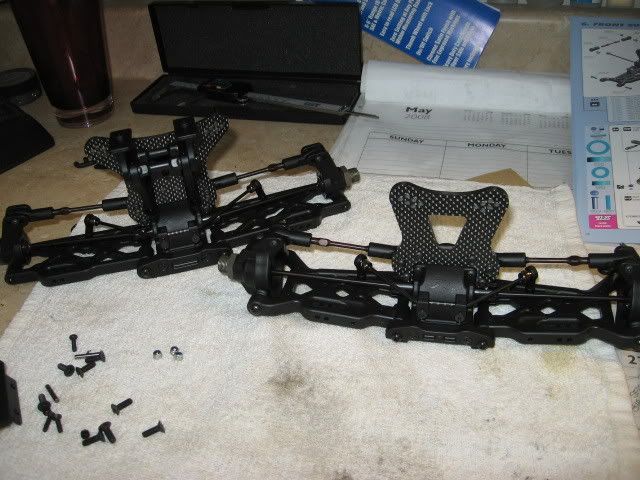

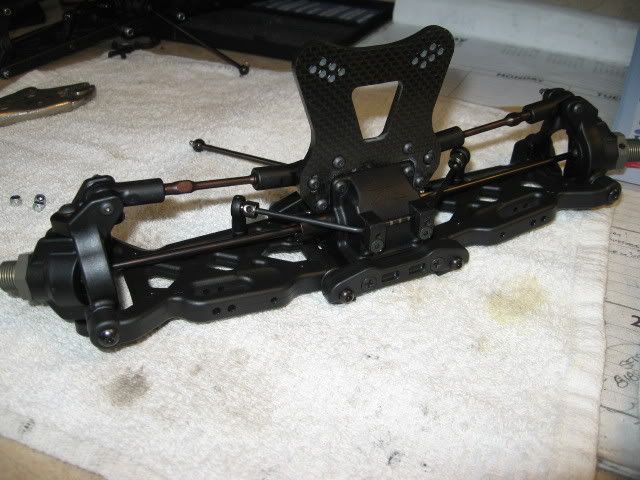

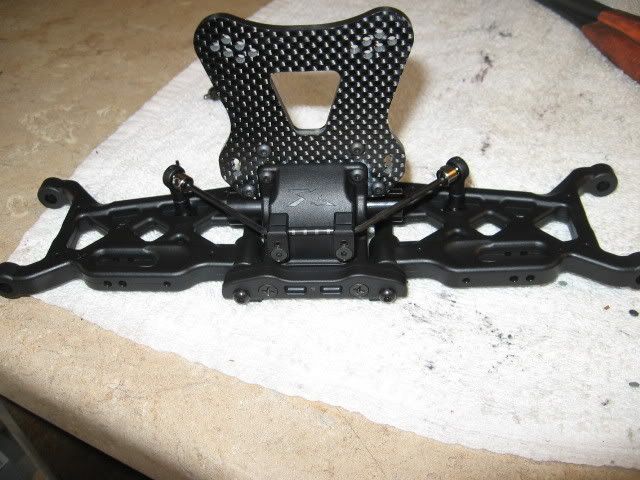

Cool, the wine and I starting to kick some butt now, here are some shoots of the front and rear suspensions all completed, I was extremely impressed with the quality of everything so far, X-Ray molds and pieces are far superior to any other plastic parts I’ve have ever worked with to-date. Can wait to see how it looks when it’s all complete..

[TDC57]

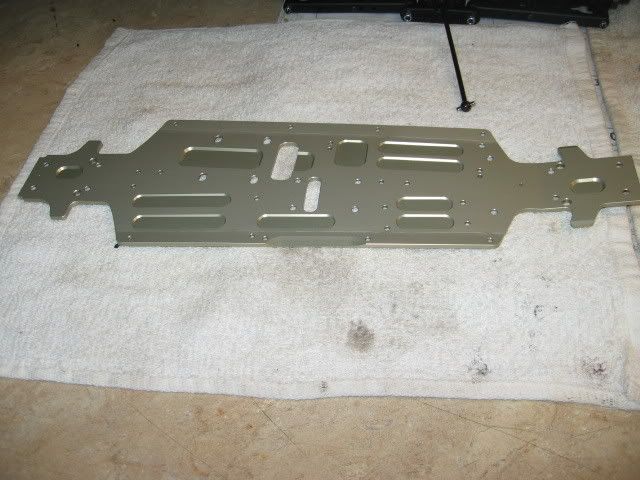

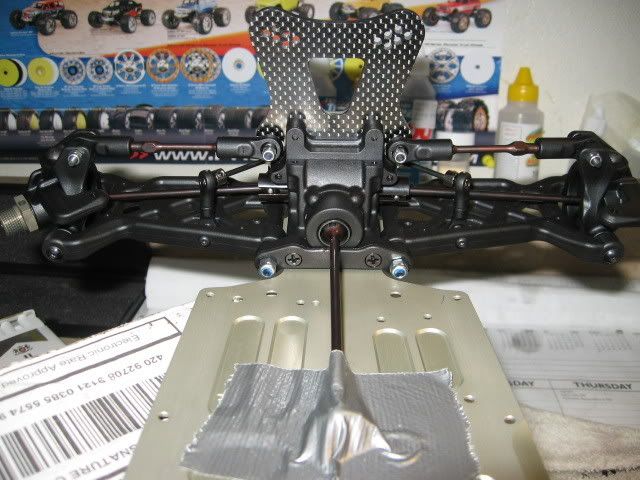

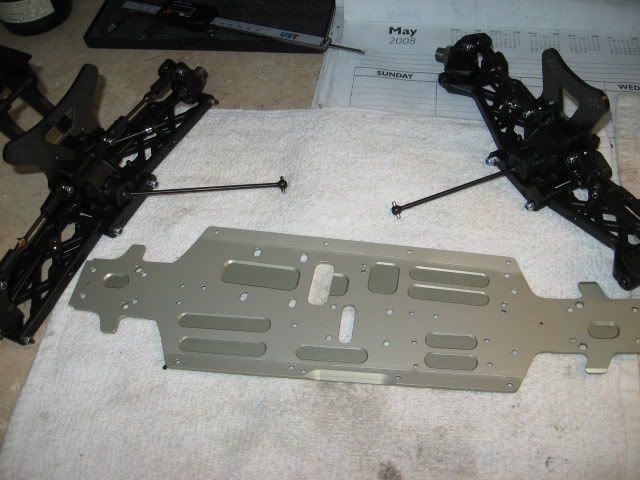

Ok, now were moving along now at a nice and steady pace.. Now the real fun gets to start, it looks like I can finally start messing with the chassis.. I’ll be installing the front & rear ends and the support bracket, better top off the glass for this one..

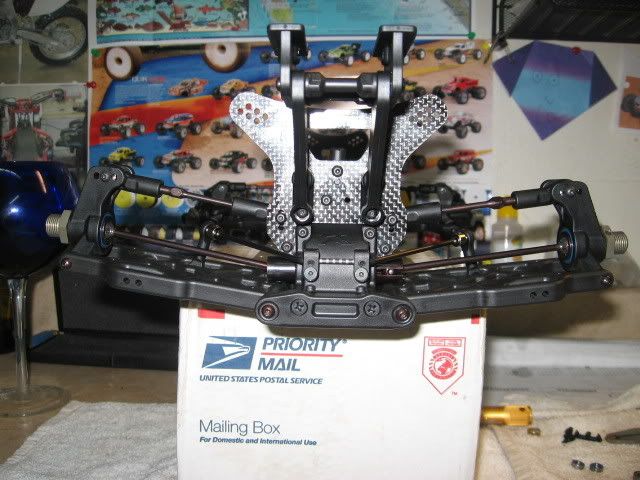

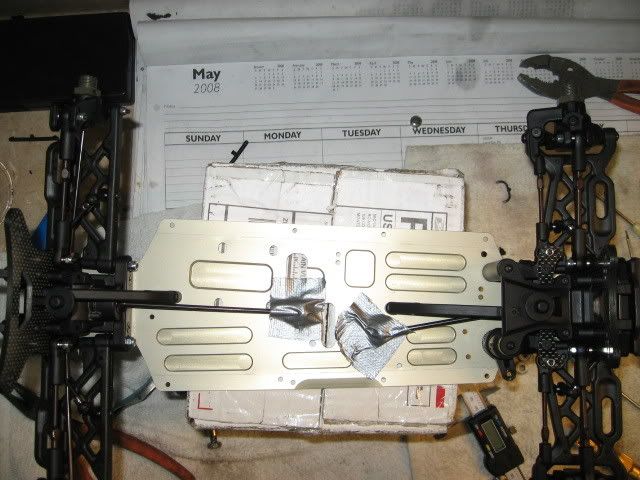

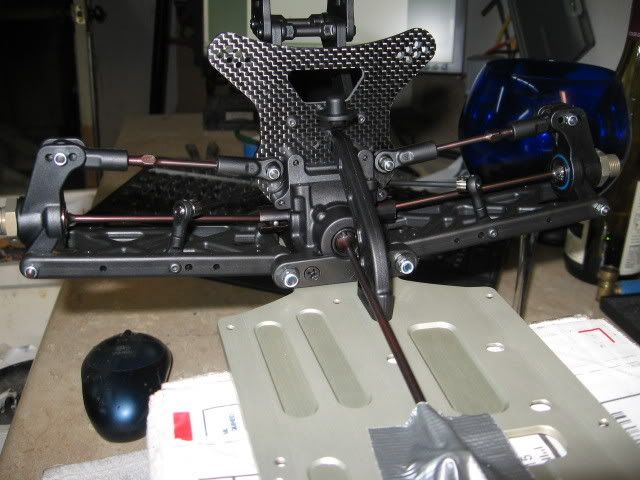

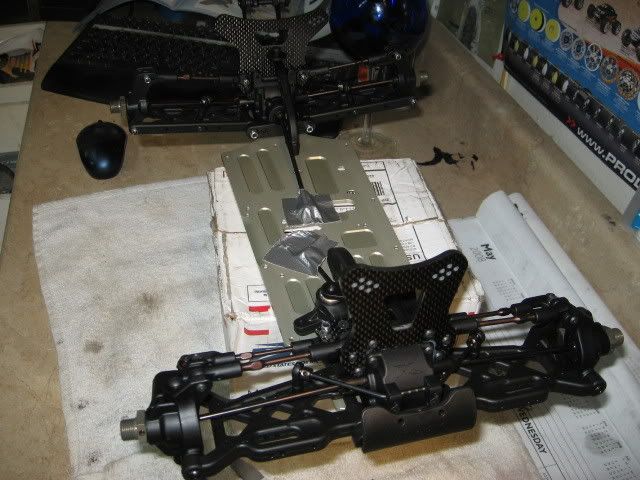

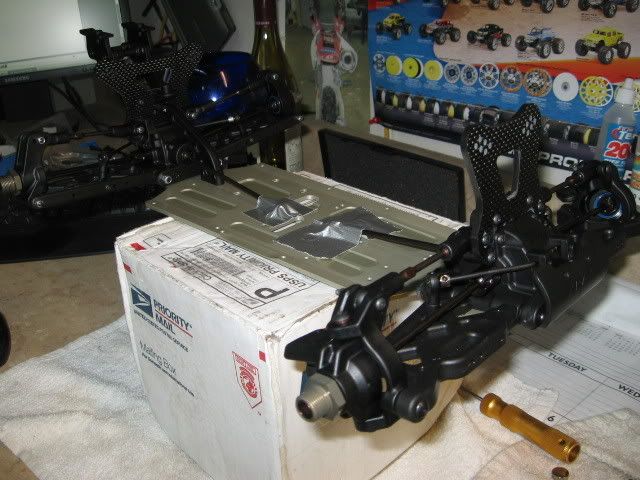

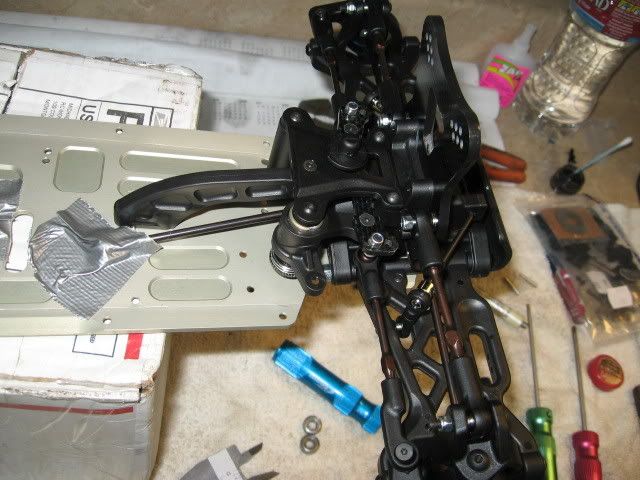

Ok the front and rear drive train is installed but something is wrong??. What is this “droop” thing??, I set my Digital caliper @ 4mm for the rear and 2mm for the front and it just looks / feels wrong!! Any thoughts / suggestions gentlemen??.. and yes NOTE the totally awesome (spare no expense) stand that I continue to use….

[TDC57]

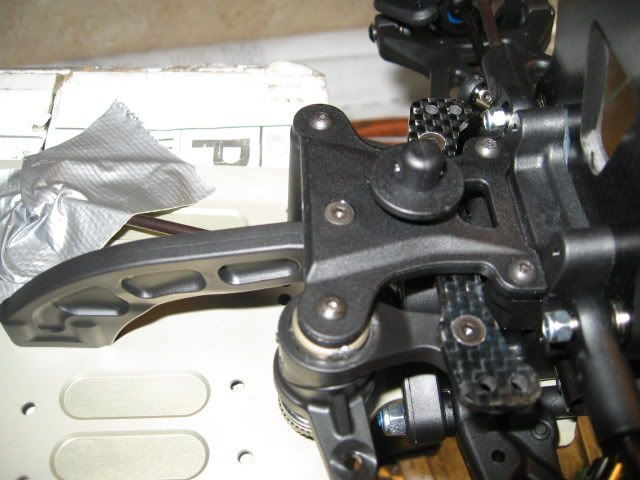

Well with the initial drive train installed and the first bottle gone, it’s now time to start the installation of my steering and open another bottle, I’ll be finishing up the night with a Meridian Pinot Noir @ 13.8% and I’ve got Chuck Berry (Johnny be good) playing in the back ground.. Life is good..

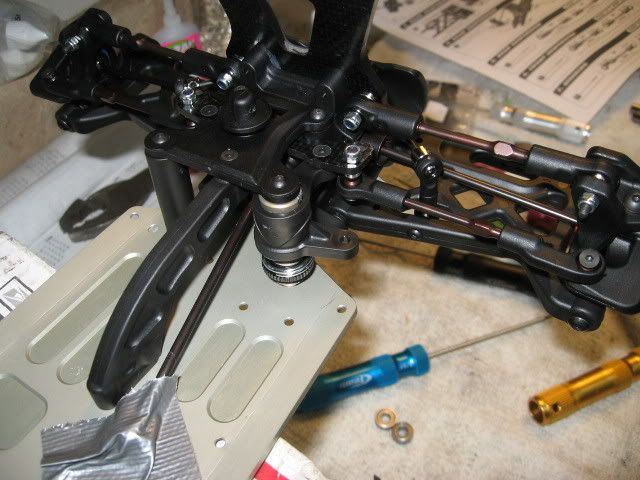

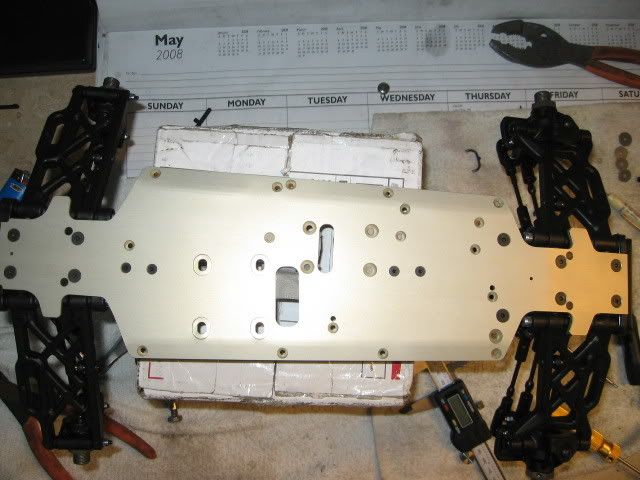

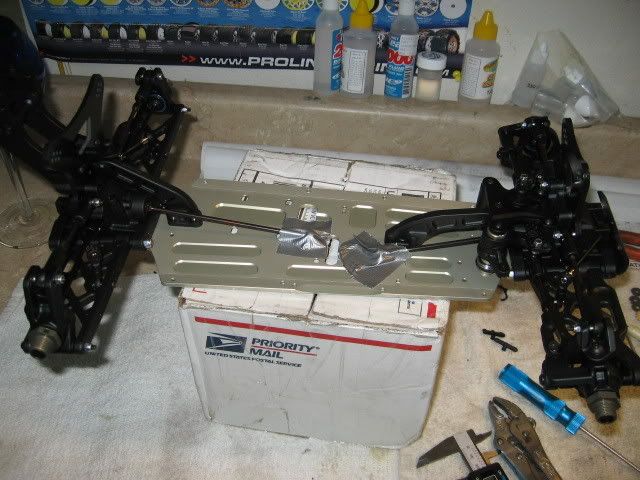

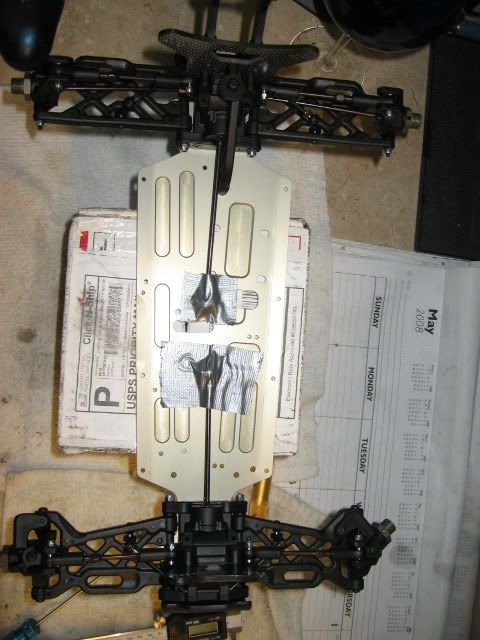

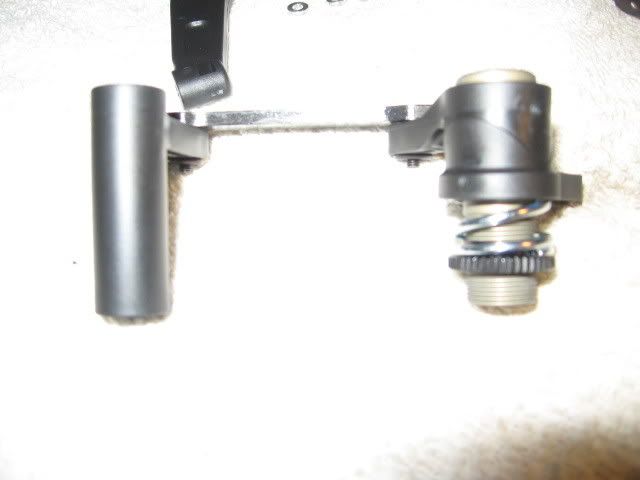

Wow… That took forever to get it right!! You will want to measure the bolts for accuracy at this phase moving forward. Eyeing them just doesn’t work.. Trust me!!!… This is where we stand after 9hrs of forward progress. FYI… (I'm craving a breakfast burrito from Jack in the box) Dam there closed!!!!
