Emaxx-Revo-Losi 1/5 AWD On-Road racer

[SpeedAssault]

Cheers All
I started a build thread and began searching for more info and found this great site.

Here's my build:
Watch here as I transform once a Emaxx crawler into a HUGE 1/5 scale High Power Brushless Lipo powered 45+ MPH On-road Drift Car and Rally jumping 4WD sedan
Always Wanted a BIG RC !:-P


Parts on hand

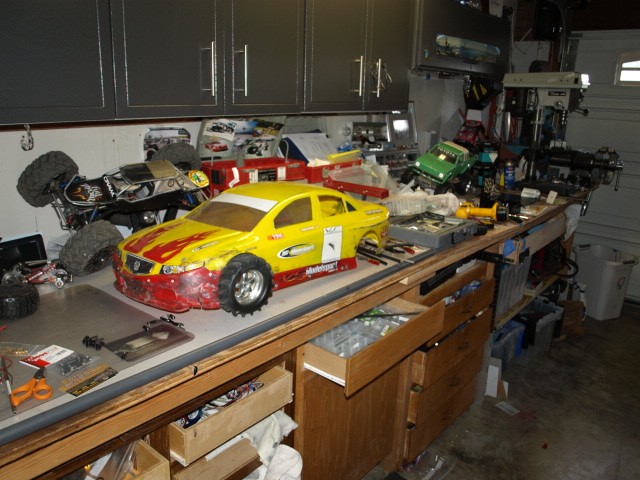

1/5 scale Sedan Body- free
E maxx Axles assemblies,
lockers
A arms- 15" wide
Revo shafts & knuckles
Emaxx 2 speed Tranny
emaxx shocks

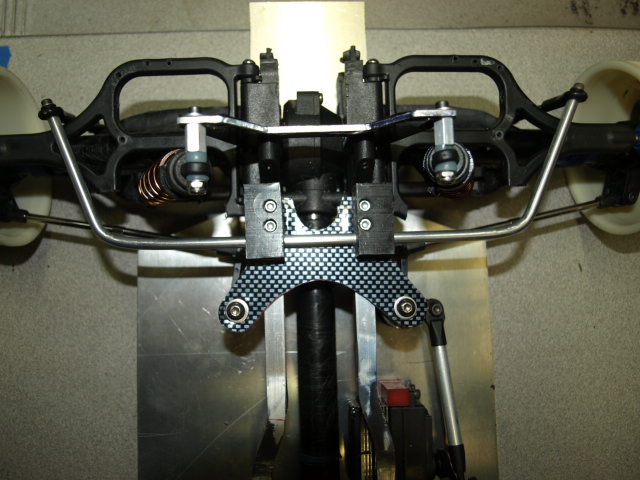

Custom made chassis Alum.
ESC Mamba Max

Just bought :
RC monster Steel Idler gear
Motor Feigao 7XL 2382 KV
HPI steering assembly
2.5 mm T6 aluminum for chassis

Wheel base 20.5"
Width 16"
Length 36"
Height 9.5"

Any recommendations on What:
Tires :?: -
Brushless motors :?: Just bought a Feigao XL 2383kv about 7 turn
Voltage :?:
Thank you


THIS IS MY KIND OF DRIVING !! DRIFTING VIDEO

Ken Block Drifting

This is low budget car build right now.

Advice Needed from you experts :)
What Gear ration Spur Pinion should I start with ? with the Feigao 7Xl Motor
any battery suggestions ? Possibly Two 2s 11.1v Lipo ..?
need on road tires too
Thinking of using XTM large buggy wheels 5" x 2.6 wide 17 hex

Preparations:
Emaxx Tranny locked in 2nd
upgraded idler gear
1st gears removed
Emaxx axles locked
Feigao 7XL 2382 Kv motor
Mamba Max


Thank you

[_paralyzed_]

you definately do not want locked diffs. It will snap your axles and make it turn like a bus.(your inside wheels need to turn rotate slower than the outside in a turn.) The only tires I know of for monster trucks are pro-lines road rages, IMO they suck though. Maybe 17mm adapters and buggy wheels? We can't determine spur/pinion until we know what motor you'll use, what batteries you'll use, and how fast you want to go. Good Luck, and welcome to the forums!

[SpeedAssault]

Originally Posted by _paralyzed_

you definately do not want locked diffs. It will snap your axles and make it turn like a bus.(your inside wheels need to turn rotate slower than the outside in a turn.) The only tires I know of for monster trucks are pro-lines road rages, IMO they suck though. Maybe 17mm adapters and buggy wheels? We can't determine spur/pinion until we know what motor you'll use, what batteries you'll use, and how fast you want to go. Good Luck, and welcome to the forums!

oh , ok thanks. I thought that's what I would need for drifting and hard pack off-road rally driving , No?

if change to differential what weight of fluid should I put in diff ?

Thank you
oh the motor is Feigao 7xl 2382 kv
Looking for mostly power torque speed would be nice in the 40's
Found this AWESOME SPEED/Motor Calculator but it's hard to figure what gear set

Looking for a 5mm shaft pinion , not sure what size tooth pinion though, any suggestions.

[TDC57]

Great looking project, I’ll be looking forward to watching it progress. A few Q &A for you??

1. Those front and rear drive lines are long.. How did you do that (It looks like to cut up a bunch of 3905 drivelines and made one long one ??) just and FYI If you ever need custom t – bones made up just PM Jordan.. He’ll hook you up with his guy who did his..

2. I think the 3905 Trans is rated @ 6s Max so at least you know your limitations there are

3. What diffs are you using ??? the stock 3905 ones or will you be installing these ?? http://www.rc-monster.com/proddetail...RO_DIFF&cat=17

4. I'm assuming that you want some large tires for it so here a link to some 23mm hubs. Or use 17 mm like Paralyzed motioned below. http://www.impaktrc.com/advanced_sea...0e44341af7ef3f

5. I have no idea on the type of tire sorry but Ryo-James will know!!! He’s building a killer 5th scale too here is his thread if you wanted to see how he’s doing it?? http://www.rc-monster.com/forum/showthread.php?t=16158

6. Two 3s 5000 lipo’s should work great, but you will need a MMM V3 or a MGM controller / ESC try here: http://www.rc-monster.com/brushlesscontrollers.php

7. lipo’s here: http://www.rc-monster.com/batteries.php or here: https://www.hobbycity.com/hobbycity/...idProduct=6350

8. You’ll need a good strong servo so I’d go with JR 8711 440 oz or the Airtronics @ 423 oz both digital, metal gear ect..

That’s about all I can think of now sorry!.. OOo 7k in the front diffs and 3-5k in the rear is what oil i use in my trucks..

Hope that helps and have a great weekend

Shaun.



P.S.
Welcome to the forum!

[Arct1k]

6S is too much for that motor - I would pre-order a a 70mm medusa in the sub 1600kv range with a MMM from Mike...

[SpeedAssault]

Originally Posted by TDC57

Great looking project, I’ll be looking forward to watching it progress. A few Q &A for you??

1. Those front and rear drive lines are long.. How did you do that (It looks like to cut up a bunch of 3905 drivelines and made one long one ??) just and FYI If you ever need custom t – bones made up just PM Jordan.. He’ll hook you up with his guy who did his..

2. I think the 3905 Trans is rated @ 6s Max so at least you know your limitations there are

3. What diffs are you using ??? the stock 3905 ones or will you be installing these ?? http://www.rc-monster.com/proddetail...RO_DIFF&cat=17

4. I'm assuming that you want some large tires for it so here a link to some 23mm hubs. Or use 17 mm like Paralyzed motioned below. http://www.impaktrc.com/advanced_sea...0e44341af7ef3f

5. I have no idea on the type of tire sorry but Ryo-James will know!!! He’s building a killer 5th scale too here is his thread if you wanted to see how he’s doing it?? http://www.rc-monster.com/forum/showthread.php?t=16158

6. Two 3s 5000 lipo’s should work great, but you will need a MMM V3 or a MGM controller / ESC try here: http://www.rc-monster.com/brushlesscontrollers.php

7. lipo’s here: http://www.rc-monster.com/batteries.php or here: https://www.hobbycity.com/hobbycity/...idProduct=6350

8. You’ll need a good strong servo so I’d go with JR 8711 440 oz or the Airtronics @ 423 oz both digital, metal gear ect..

That’s about all I can think of now sorry!.. OOo 7k in the front diffs and 3-5k in the rear is what oil i use in my trucks..

Hope that helps and have a great weekend

Shaun.



P.S.
Welcome to the forum!

You are an Ace
Thank you ! and HUGE Thanks to your Awesome Feedback and the links, that is really great.

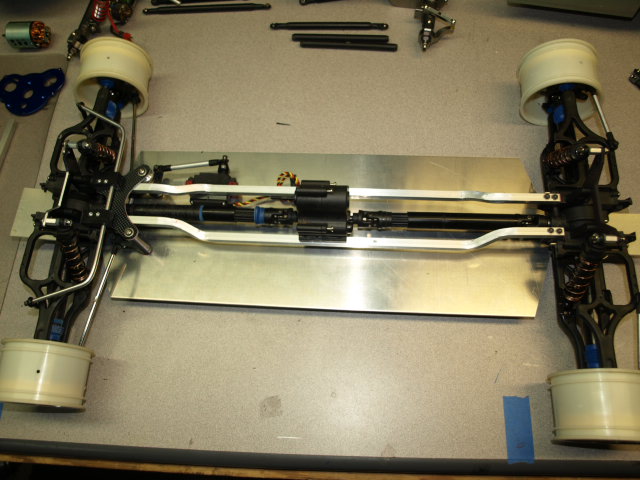

1. they are Revo's cut and used 2 to get the length. outer, innner, outer inner outer to trans
Thank you for the name of where to get stronger ones . I saw those in jordans build.
2. the trans is an old emaxx not 3905, but I like the Laydown option of the Xray b808 diff.
3. diffs are stock with spools. should I go back to Diffs? maybe use Ofna Diffs. cant afford the Hotboddies right now, I was laid off my 10yr job a few months ago and finding another job has been tough.
4.5. I'll check that out.
6. Cant afford a new ESC right now, but thank you for your input.
7. my Mamba max can only handle two 2s lipo, but I will look into those as I will Always Progress in this build as money will allow.
8.Servo will be a Airtronics 400oz or a Hitec 5955 that I have

Thank so much again . You are the man !
like to read your builds

[TDC57]

You’re more than welcome we all help out each other whenever we can..

your MM will do great on 4s no worries, you might want to think about adding a fan and doing mods to it later.. Just a thought..

Jordan is you man on the Center diffs too.. here's link to them if you want or watch Ebay they have some XT8 and 808 center on there now of sale
http://www.amainhobbies.com/product_...oducts_id/8633
You will also need some of these..
http://www.amainhobbies.com/product_...oducts_id/8629 or Ebay for a better buy..

Best of luck again should be a fun build..

Bye the way thanks for the compliments..

[Arct1k]

For 4s I would recommend adding an extra Cap either the Novak HV 2700uf or similar.

You should also get an Ubec and the 5v fan is not a bad idea...

[SpeedAssault]

Wow ! What a Great, informative, helpful & generous FORUM ! You guys are really great. Haven't experienced that much guidance before, the links are great. I believe I have found a place I fit in. I think that what these forums should be not the vague or the acronyms or make you search, ya know. It's really nice to have it all there. I look forward to helping in some way here also.

Originally Posted by TDC57

You’re more than welcome we all help out each other whenever we can..

your MM will do great on 4s no worries, you might want to think about adding a fan and doing mods to it later.. Just a thought..

Jordan is you man on the Center diffs too.. here's link to them if you want or watch Ebay they have some XT8 and 808 center on there now of sale
http://www.amainhobbies.com/product_...oducts_id/8633
You will also need some of these..
http://www.amainhobbies.com/product_...oducts_id/8629 or Ebay for a better buy..

Best of luck again should be a fun build..

Bye the way thanks for the compliments..

Very welcome



Yea, I really like that idea of tranny-diff idea instead of big emaxx tranny. I will work it in eventually. Thank u

Originally Posted by Arct1k

For 4s I would recommend adding an extra Cap either the Novak HV 2700uf or similar.

You should also get an Ubec and the 5v fan is not a bad idea...

What do you recommend for 6 volt fans ? ?
going to use a Deminsion engineering BEC. I have Castle becs but I am using them in my Crawlers.
Humm , not sure just yet how to fit-add a Cap on the mamba, Castle tech said it will do well because they are so over built.
I'm stealing the MM out of my Latest Creation Full Throttle custom Super Crawler, build thread just added to my sig, it's got 6 watt 4 speaker MP3 stereo loaded in it complete with Real V8 engine sound.
Here's a sneak peek



My latest creation below
Console shifter turns car on
twin stick turns on stereo Amplifier
Sony MP3 with Tunes and Real V8 engine sound
18" wheel base 14" wide
Axial trans
Revo drive shafts
Losi aftershock Diffs, custom lockers
Hyper 8 shafts
Xtm hubs
custom SS axle tubes and Knuckles
1/4 Tube steel MIG welded Chassis
2wd, 4wd and DIG by Remote
HiTec 7955 front rear steering servos
Castle bec
Mamba max
Climbs great when tires are working, Moabs stink

[TDC57]

Those / that supper crawlers are way too cool.. You need to post it up in our crawling section and let the team see it there.. Why you are there you might also like to see Lincpimps 6x6 it's really cool.. and check out MetalMan's COR build there as well and many, many other great builds

I'm glad we can help!, we all help out eachother when we can that what makes this place GREAT! we are all one big happy famely.. Kinda of

[I Trust Tyler]

Hey Speed Assault i've been working on a similar 1/5 scale emaxx based sedan, and i found a way to use legit 5th scale tires without making wheel adapters. We should start getting people psyched on large scales!

[SpeedAssault]

Originally Posted by I Trust Tyler

Hey Speed Assault i've been working on a similar 1/5 scale emaxx based sedan, and i found a way to use legit 5th scale tires without making wheel adapters. We should start getting people psyched on large scales!

Dude that's Sweet ! where's your build ?
Without adaptors, what's your idea ?
From what I have read the 1/5 wheels are about 18mm square. those tiresare super expensive and those guys have races in my area which is where I picked up that Yellow Sedan for free. Tony from Rc tech said that the best time to pick up used tires is end of the season. What places, ideas do you have on getting wheels to fit?

Rian

[I Trust Tyler]

I wish i finished my build, i was planning on changing out my e-maxx tranny for a lower profile style transmission. i have to get back into it, i found some 5th scale part hook ups via http://www.fgsupply.com/cart.cgi?gro...9&movetopage=1 I bought a new body, 5th scale shocks and a few other random things for less than what regular 10th and 8th scale parts cost! the tires i bought were the most expensive part..100 bucks and i don't wanna divulge the wheels i used just yet because i do plan on finishing and having a build thread for it. You'll be the first to know.
Main reason i stopped building is that i got into building my 240sx and went totally nuts with it.

[I Trust Tyler]

I also really wanna build a 5th scale Baja truck, Ahhhh so many ideas, so little time and money!

[lydiasdad]

Here is e-maxx to 1/5 scale baja. I LOVE it. http://www.rc-monster.com/forum/showthread.php?t=10363
