MGM esc cap problem ( high res ) |
 |
|
 |
|
(#1)
|
|
RC-Monster Carbon Fiber
Offline
Posts: 491
Join Date: Sep 2008
Location: Kerrville Tx.
|
MGM esc cap problem ( high res ) -
04.17.2011, 09:27 PM
http://i183.photobucket.com/albums/x...090107_002.jpg
http://i183.photobucket.com/albums/x...090107_003.jpg The pictures say 1000 words |
|
|
|
 |
 |
 |
|
|
|
|
|
|
(#2)
|
|
RC-Monster Carbon Fiber
Offline
Posts: 491
Join Date: Sep 2008
Location: Kerrville Tx.
|
04.17.2011, 09:41 PM
Should i try and re solder it or should i replace the capacitor?
|
|
|
|
|
|
|
|
|
|
|
|
|
(#3)
|
|
RC-Monster Admin
Offline
Posts: 14,609
Join Date: Nov 2005
Location: Des Moines, IA
|
04.17.2011, 09:53 PM
Replace it. You may be able to solder it so it is workable, but the heat so near the device may not be good.
|
  |
|
|
|
|
|
|
|
|
|
|
(#4)
|
|
RC-Monster Carbon Fiber
Offline
Posts: 491
Join Date: Sep 2008
Location: Kerrville Tx.
|
04.17.2011, 10:03 PM
can you show me a cap that will work?
Im good with the SMT stuff i do work soldering on phones all the time It still works even with the cap disconnected it just cuts out |
|
|
|
|
|
|
|
|
|
|
|
|
(#5)
|
|
RC-Monster Brushless
Offline
Posts: 2,085
Join Date: Sep 2007
|
04.17.2011, 10:30 PM
Hi,
The critical numbers that you have to look for are: 105C - this is the maximum operating temperature - also points toward the fact that it is low esr. 50v - maximum operating voltage 390uf - universal farad number or capacity. This number can be larger but not smaller. Looks like you need to match the diameter also, length doesn't matter. I would Ebay it.
|
|
|
|
|
|
|
|
|
|
|
|
|
(#6)
|
|
RC-Monster Carbon Fiber
Offline
Posts: 491
Join Date: Sep 2008
Location: Kerrville Tx.
|
04.17.2011, 10:37 PM
so nothing i could pick up at the local radio $h*t?
|
|
|
|
|
|
|
|
|
|
|
|
|
(#7)
|
|
RC-Monster Aluminum
Offline
Posts: 738
Join Date: Oct 2010
Location: Williston, ND
|
04.17.2011, 10:59 PM
you might be able to find it at radio shack or another local electronics store. Go take a looksee.
|
|
|
|
|
|
|
|
|
|
|
|
|
(#8)
|
|
RC-Monster Carbon Fiber
Offline
Posts: 491
Join Date: Sep 2008
Location: Kerrville Tx.
|
04.17.2011, 11:00 PM
yea i think i will tomorrow.
|
|
|
|
|
|
|
|
|
|
|
|
|
(#9)
|
|
RC-Monster Admin
Offline
Posts: 14,609
Join Date: Nov 2005
Location: Des Moines, IA
|
04.17.2011, 11:26 PM
You won't find caps rated for 105*C at RS, only 85*C, and those are not sufficient....
|
|
|
|
|
|
|
|
|
|
|
|
|
(#10)
|
|
|
RC-Monster Carbon Fiber
Offline
Posts: 491
Join Date: Sep 2008
Location: Kerrville Tx.
|
04.17.2011, 11:28 PM
Quote:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(#11)
|
|
RC-Monster Aluminum
Offline
Posts: 738
Join Date: Oct 2010
Location: Williston, ND
|
04.18.2011, 01:58 AM
ah, I didn't know the rat didn't carry high temp caps :)
|
|
|
|
|
|
|
|
|
|
|
|
|
(#12)
|
|
RC-Monster Aluminum
Offline
Posts: 738
Join Date: Oct 2010
Location: Williston, ND
|
04.18.2011, 02:06 AM
I ordered my caps from digikey, they have a funky checkout system....but I found them to be the cheapest after shipping was factored in for buying single caps and what not....
Here is the search screen on their site, http://search.digikey.com/scripts/DkSearch/dksus.dll I tried linking you to a search I already did, but it didn't work...pretty easy search options though. Each cap should be under a buck. |
|
|
|
|
|
|
|
|
|
|
|
|
(#13)
|
|
RC-Monster Carbon Fiber
Offline
Posts: 491
Join Date: Sep 2008
Location: Kerrville Tx.
|
04.18.2011, 12:23 PM

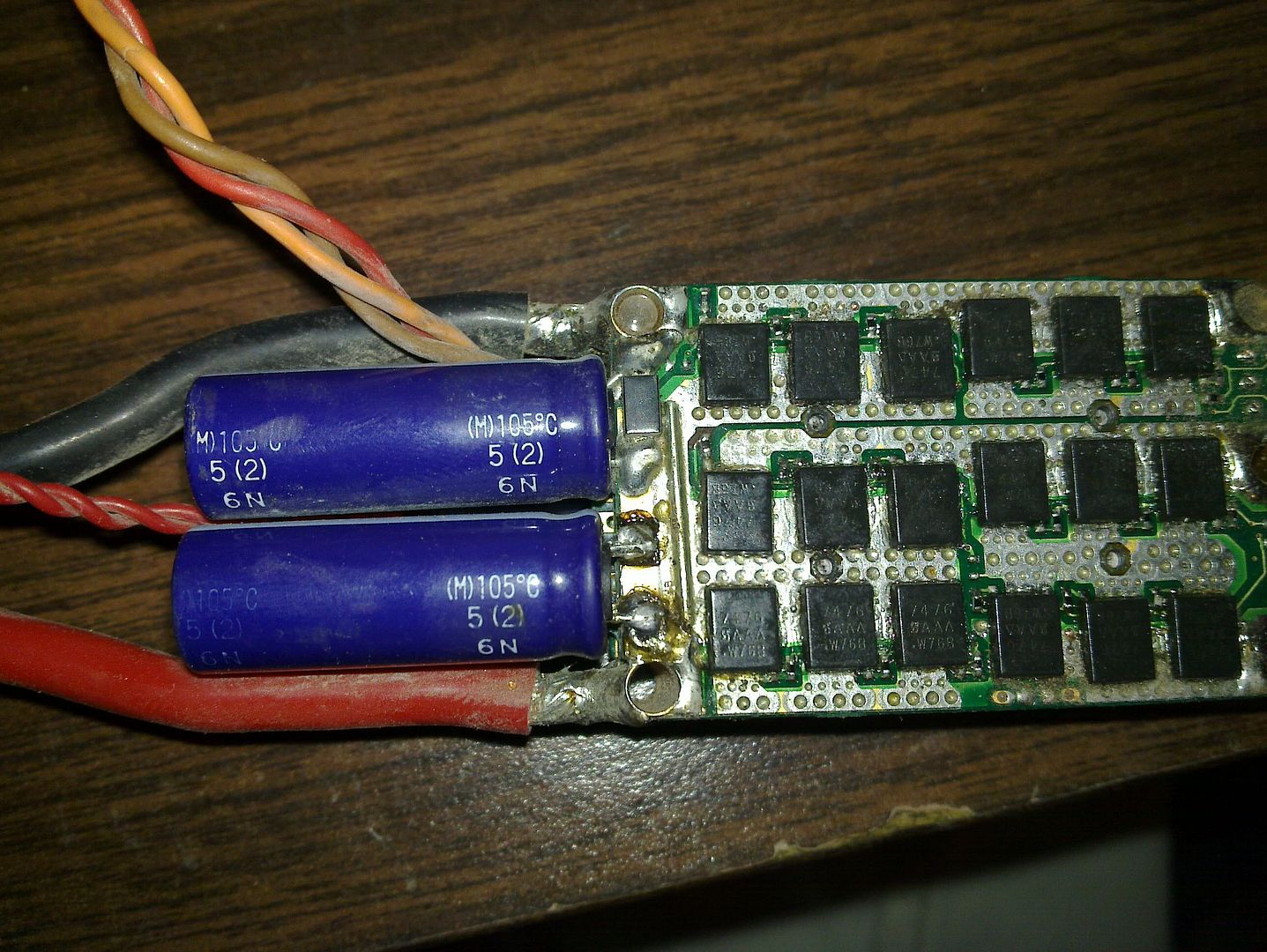

Eh i just decided to fix it. It seemed easiest
http://i183.photobucket.com/albums/x...090107_004.jpg |
|
|
|
|
|
|
 |
«
